# Cascades

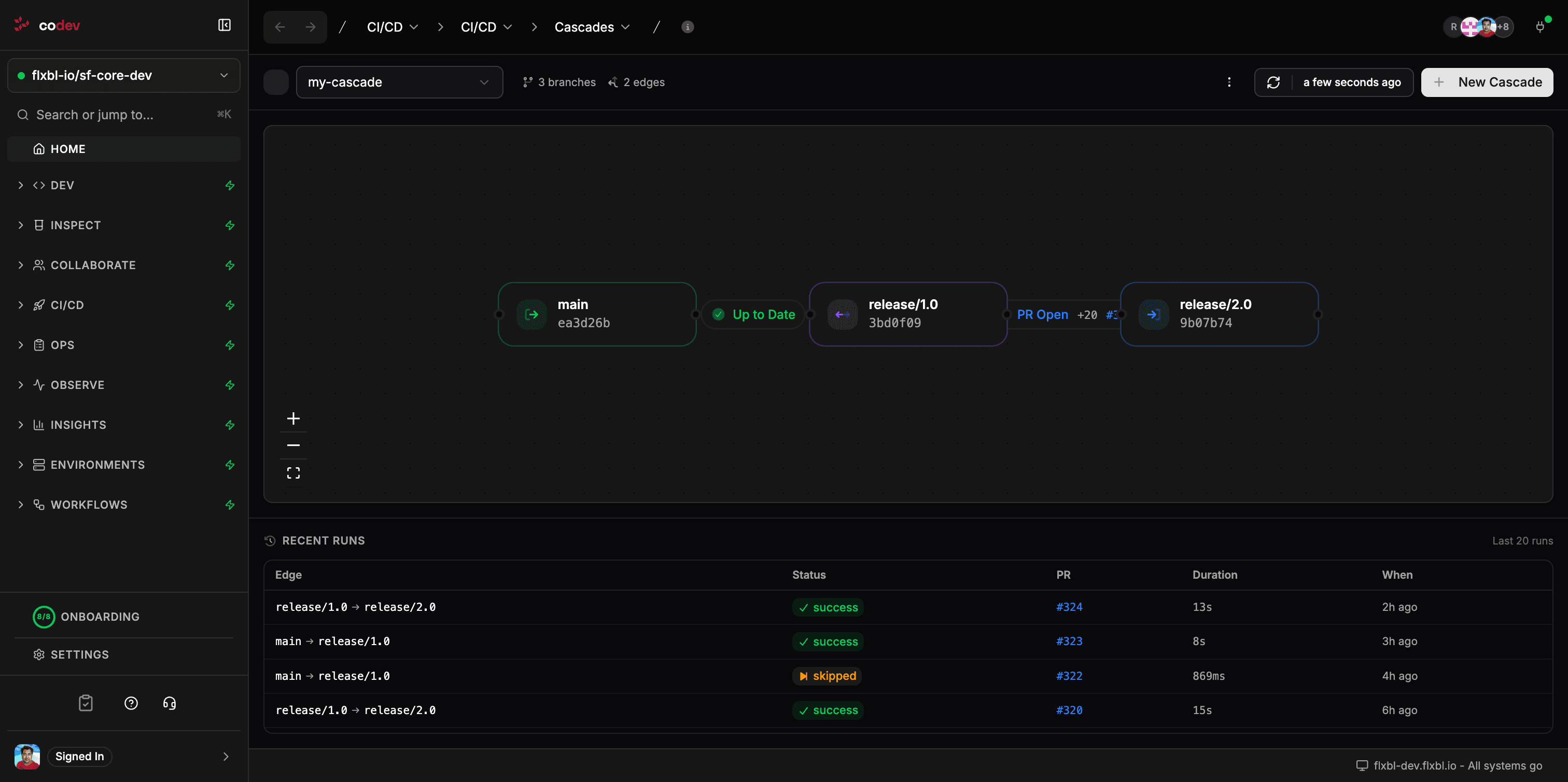

The Cascades page showing a long-running branch flow and the cascade run history
Cascades are for long-running branches. The default branching pattern in codev is trunk-based development with [domains](/flxbl/codev/ci-cd/overview-1.md#domains) and short-lived feature branches that merge directly back to `main`. Cascades are not part of that model.
A cascade describes how changes should flow between two or more long-running branches, and automates the integration work that keeps those branches from drifting apart.
## When to use a cascade
Use a cascade only when a long-running parallel branch is unavoidable. Typical situations:
* A managed package upgrade effort that lives on its own branch for weeks while regression testing finishes
* A vendor or partner delivering a capability that spans multiple domains and is not ready to merge in increments
* A major refactor (security model, domain split, foundational library replacement) that needs to keep absorbing trunk changes over a multi-week effort
If your branches live for days rather than weeks, you do not need a cascade.
{% hint style="warning" %}
The longer a branch lives, the more integration cost accumulates. Cascades reduce the cost of operating long-running branches; they do not remove it. Trunk-based development remains the default.
{% endhint %}
## What a cascade does
A cascade watches a source branch, opens a pull request from `cascade/-to-` against the target branch when the source moves ahead, attempts a three-way merge, and updates the PR on each cascade run. When the PR is merged, codev runs a cascade build that ensures every package in every affected domain is also deployed to the environments registered against the target branch.
## AI-assisted merge
When a cascade attempts a three-way merge and hits conflicts, you can either resolve them by hand or use AI-assisted merge. AI assist is enabled per edge by setting `aiAssistedMerge: true`.
When enabled, on a conflict the cascade:
1. Builds a functional summary of what each branch changed since they diverged, drawing on commit history from both sides.
2. Analyzes each conflicted file and produces a proposed resolution with a confidence score between 0 and 1.
3. Applies resolutions with a confidence of at least 0.7. Files below the threshold are left as standard git conflict markers.
4. Writes the analysis into the cascade PR description: an overall summary, a table of resolved files with the decision taken, a table of unresolved files with the obstacle, and a merge plan.
Reviewers see the PR with the high-confidence conflicts already resolved and the AI's reasoning recorded inline. The PR still goes through the normal review process — the AI does not bypass approval.
```yaml
- source: main
target: release/spring-26-upgrade
trigger:
type: on_merge
aiAssistedMerge: true
```
The confidence threshold is fixed. If you need to revisit a resolution after the AI has applied it, edit the cascade branch directly — see [Resolving conflicts by hand](#resolving-conflicts-by-hand).
### Conflict-set limits
AI-assisted merge is skipped when the conflict set is too large to analyze. The cascade falls back to a manual conflict pull request and records the reason in the pull request body and the run summary.
Two optional per-edge keys set the cut-off:
| Key | Default | Measures |
| --------------------------------- | ------- | ----------------------------------------- |
| `skipAiMergeAboveConflictedFiles` | 100 | Number of conflicted files |
| `skipAiMergeAboveConflictedLines` | 10000 | Total conflicted lines across those files |
Whichever limit is crossed first decides. Both take a positive integer; omit a key to use its default.
```yaml
- source: main
target: release/spring-26-upgrade
trigger:
type: on_merge
aiAssistedMerge: true
skipAiMergeAboveConflictedFiles: 100
skipAiMergeAboveConflictedLines: 10000
```
Rerunning a cascade run can set either value for that run alone. Open the run, choose **Rerun entire flow**, expand **Advanced JSON overrides**, and supply the keys:
```json
{ "skipAiMergeAboveConflictedFiles": 5 }
```
Overrides are merged into the run's stored payload, so keys you omit keep the value the previous run used. To stop overriding a threshold that an earlier run set, pass it as `null` — that removes the key and the edge's configured value applies again:
```json
{ "skipAiMergeAboveConflictedFiles": null }
```
## Configuration
A cascade is a YAML document attached to your project. It has a name, an optional description, and one or more edges. Each edge has a source branch, a target branch, and a trigger.
```yaml
name: spring-26-upgrade
description: Keep the Spring '26 upgrade branch in sync with trunk
edges:
- source: main
target: release/spring-26-upgrade
trigger:
type: on_merge
aiAssistedMerge: true
```
### Trigger types
| Trigger | When it runs |
| ----------- | -------------------------------------------------------------------------------- |
| `on_merge` | After a merge to the source branch |
| `scheduled` | On an interval (e.g., `4h`, `1d`) |
| `manual` | Only when invoked via `sfp cascade run --name ` or the Run action in codev |
### Multi-edge cascades
A cascade can contain a chain of edges. Edges must form a DAG; cycles are rejected at save time.
```yaml
name: release-promotion
edges:
- source: main
target: release/1.0
trigger: { type: on_merge }
- source: release/1.0
target: release/2.0
trigger: { type: scheduled, interval: 4h }
```
## Creating a cascade

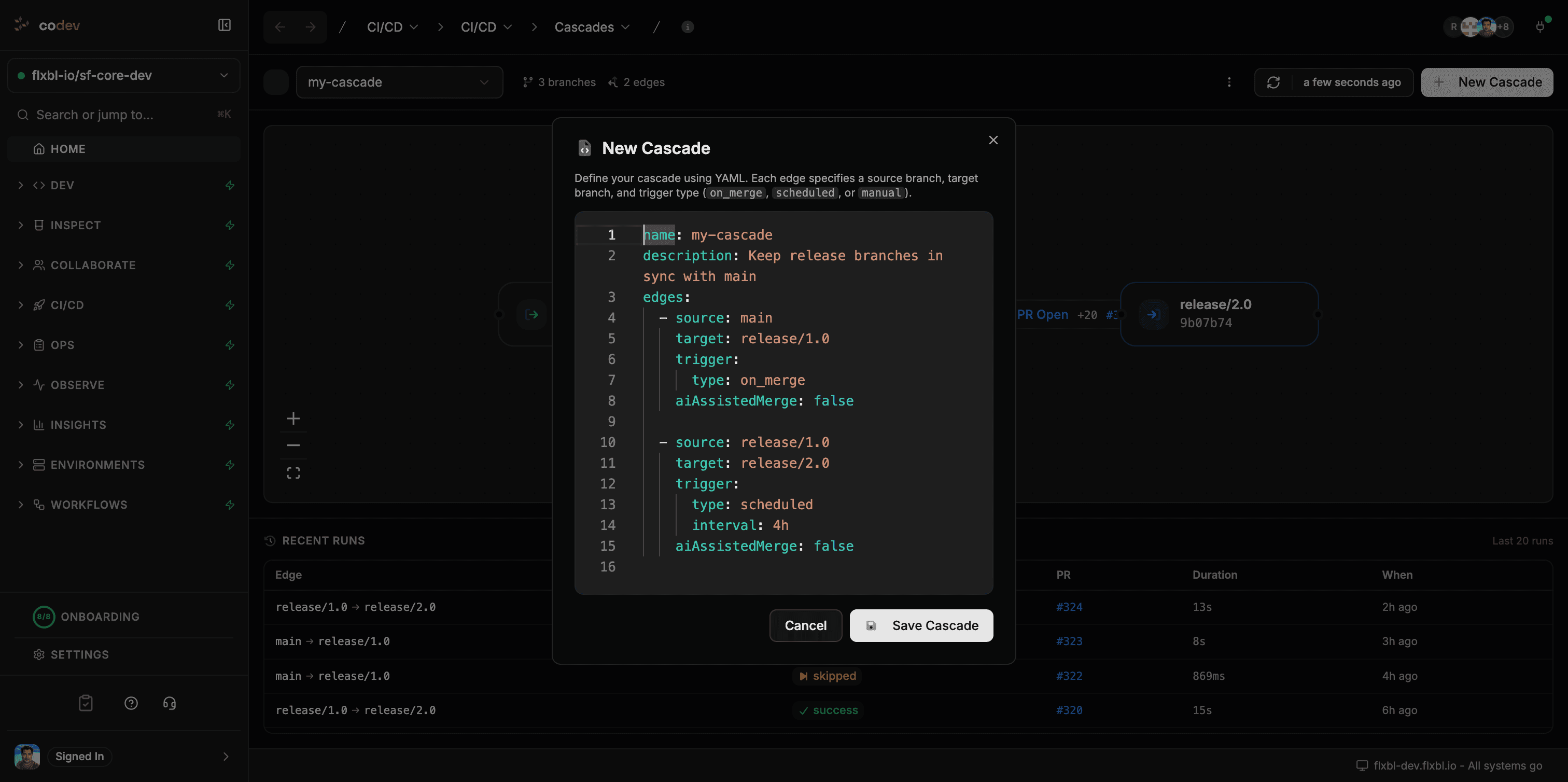

The New Cascade dialog with the inline YAML editor and trigger-type hints
Click **New Cascade** on the Cascades page to open the YAML editor. The editor validates as you type — missing fields, invalid trigger intervals, and DAG violations are reported before save.
From the terminal:
```bash
sfp cascade create -f cascade.yaml
sfp cascade run --name
sfp cascade list
```
The CLI and the UI write to the same project configuration.
## What happens when a cascade PR is merged
When a cascade PR is merged, codev runs a cascade build that:
* Processes every package in every affected domain, including those whose artifacts already exist
* Produces release definitions for each domain
* Deploys to every environment registered against the target branch
{% hint style="warning" %}
**Merge with a merge commit. Do not squash, do not rebase.** The merge commit's second parent is how git tracks what has already been cascaded. Squashing or rebasing drops that link, and the next cascade run will re-compute the same merge base and re-propose the same changes — and the same conflicts. The cascade PR description includes this warning for reviewers.
{% endhint %}
## Resolving conflicts by hand
To resolve conflicts manually, check out the `cascade/-to-` branch, fix the conflicts, commit, and push. codev detects human commits on the cascade branch and pauses automatic updates to that PR until it is merged or closed.
## Cascades and Build on Merge
Cascade behavior is independent of the Build on Merge workflow. Three settings can be configured separately:
| Setting | Controls |
| -------------- | -------------------------------------------------------------- |
| Build on Merge | Whether non-cascade pushes trigger a build |
| Cascade build | Whether merged cascade PRs trigger a cascade build |
| Cascade edges | Whether cascade PRs are opened and updated when branches drift |
Cascade edges open PRs even when both build flows are disabled. This makes cascades usable in projects that run builds from an external pipeline.
## Run history
The **Recent Runs** table shows the last 20 runs per edge with the source and target, run status, cascade PR number, duration, and time. Run statuses:
| Status | Meaning |
| ------------- | -------------------------------------------------------------------------- |
| `success` | A cascade PR was opened or updated cleanly |
| `no_change` | The source had no commits that were not already on the target |
| `skipped` | A previous cascade PR is open and has human commits; auto-update is paused |
| `conflicts` | Conflicts could not be resolved automatically |
| `ai_assisted` | AI assist resolved one or more conflicts |
| `error` | The run failed; see the workflow run for details |
## Controlling what the cascade build deploys
The cascade build uses the same release configs and `sfdx-project.json` controls as a normal build:
* **Skip a package** — add `"ignoreOnStage": ["build"]` to the package entry. See [Ignoring packages from being built](https://docs.flxbl.io/flxbl/sfp/building-artifacts/controlling-aspects-of-the-build-command/ignoring-packages-from-being-built).
* **Group packages into a domain** — define a release config per domain. See [Release config reference](https://docs.flxbl.io/flxbl/sfp/development/defining-a-domain/release-config).
A package excluded from a domain's release config will not be deployed by the cascade build.
---
