Change analysis

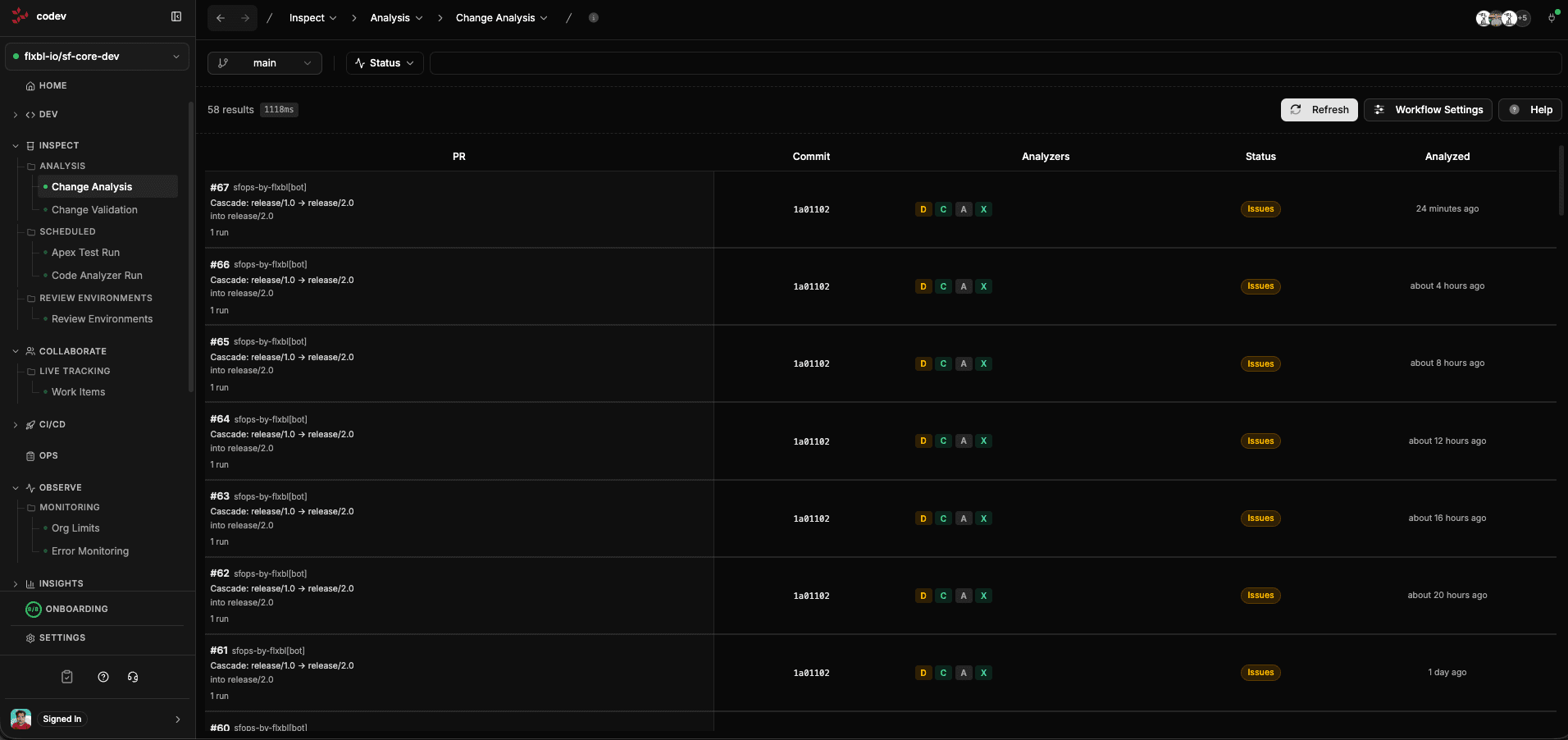

Change Analysis page
Change Analysis showing PR results with linter badges for Duplicates, Compliance, Architecture, and Code Analyzer

Change Analysis automatically reviews every pull request for code quality issues before it is merged. It runs four linters against the PR diff — not the entire repository — so results are focused on what actually changed.

What gets checked

Each PR is analyzed by four linters. Results appear as colored badges on each PR row — green for pass, orange for warnings, red for failures.

Duplicates

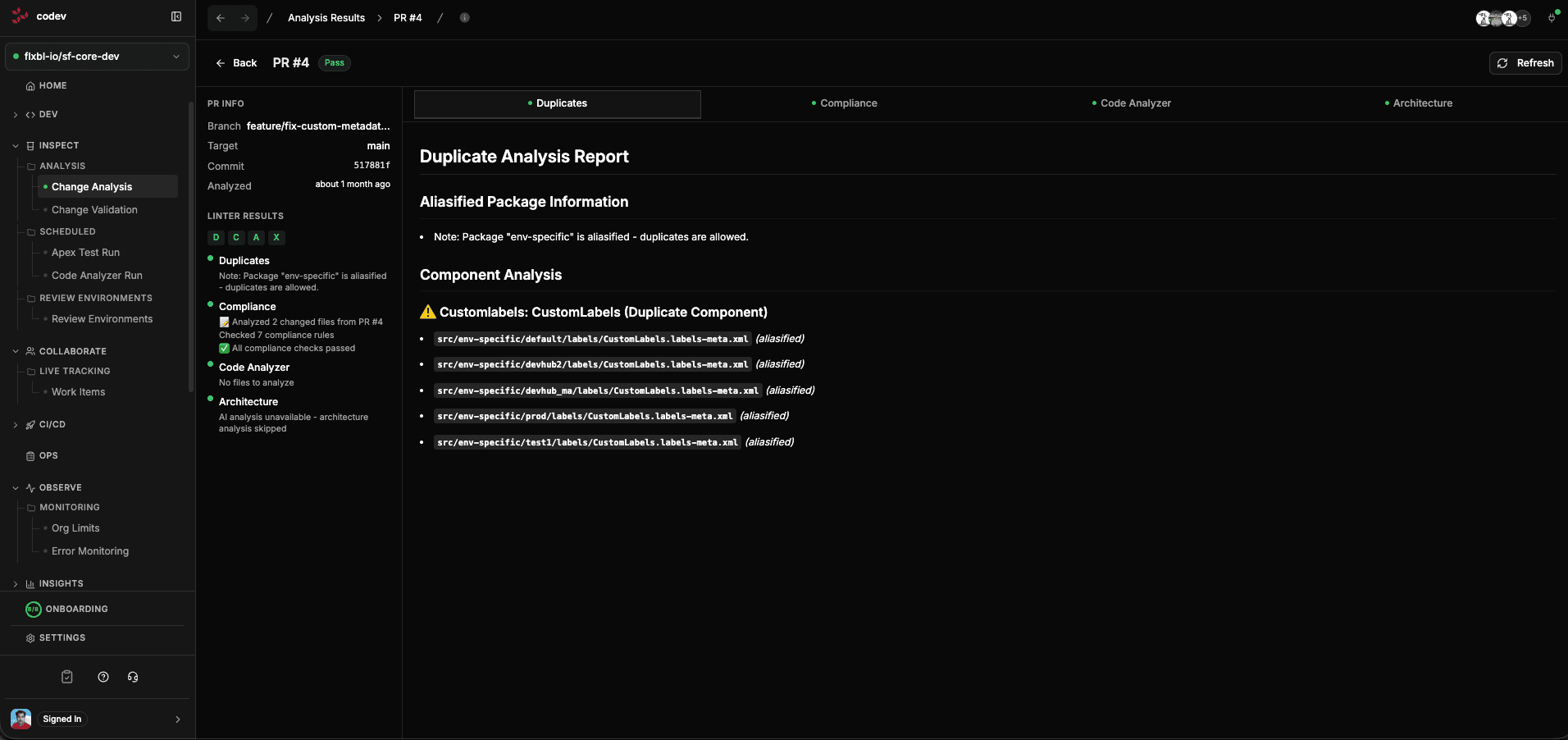

Duplicate Analysis Report
Duplicate Analysis showing aliased package detection with file locations

Detects duplicate metadata components across your packages. For example, if the same CustomLabel appears in multiple packages, the Duplicates linter flags it with the exact file paths. This prevents conflicts during deployment where one package's version of a component overwrites another.

Compliance

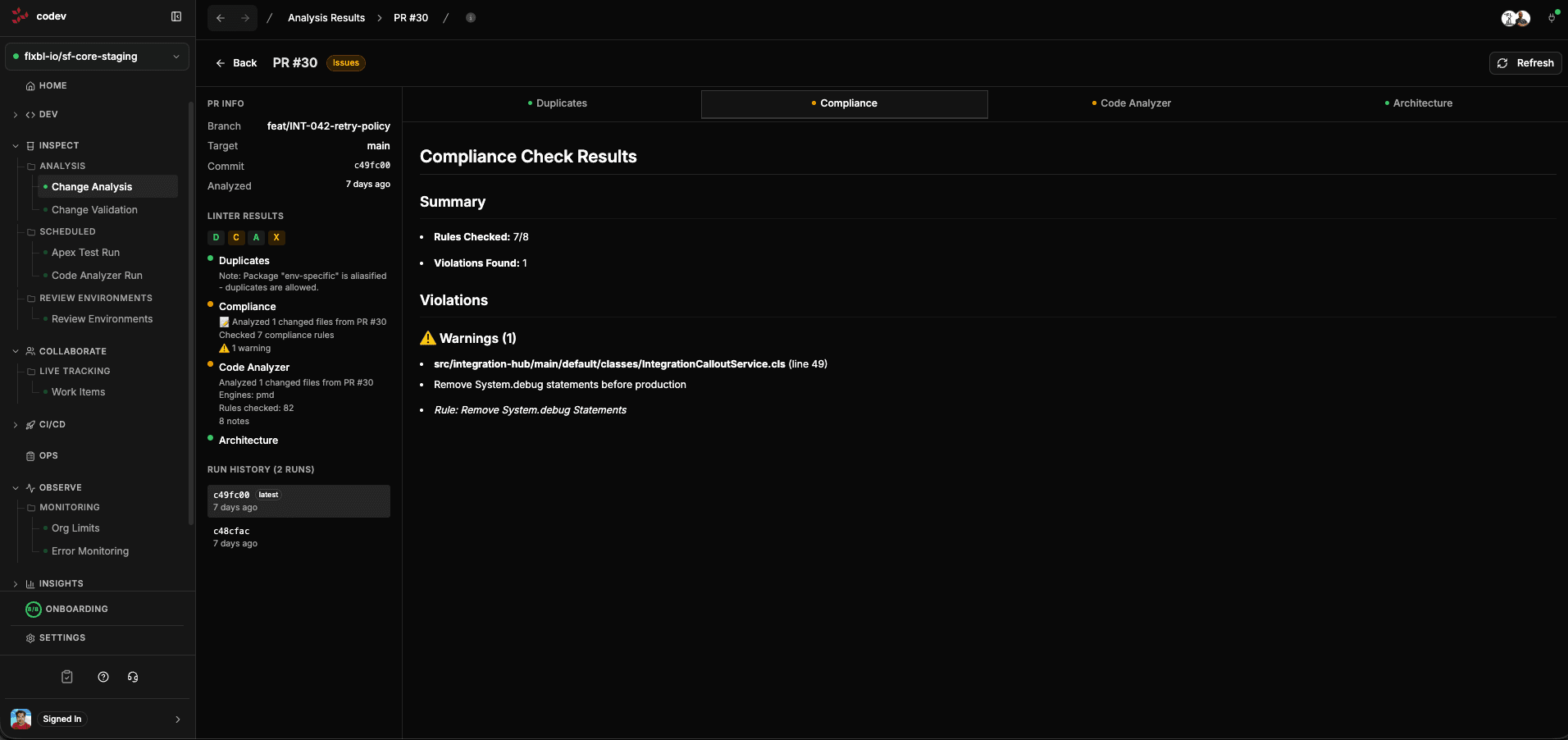

Compliance Check Results
Compliance Check showing rules checked, violations found, and specific warnings with file locations and rule details

Checks your changes against a set of compliance rules. The report shows how many rules were checked, how many violations were found, and the specific warnings with file locations and rule descriptions. For example, flagging System.debug statements that should be removed before production.

Code Analyzer

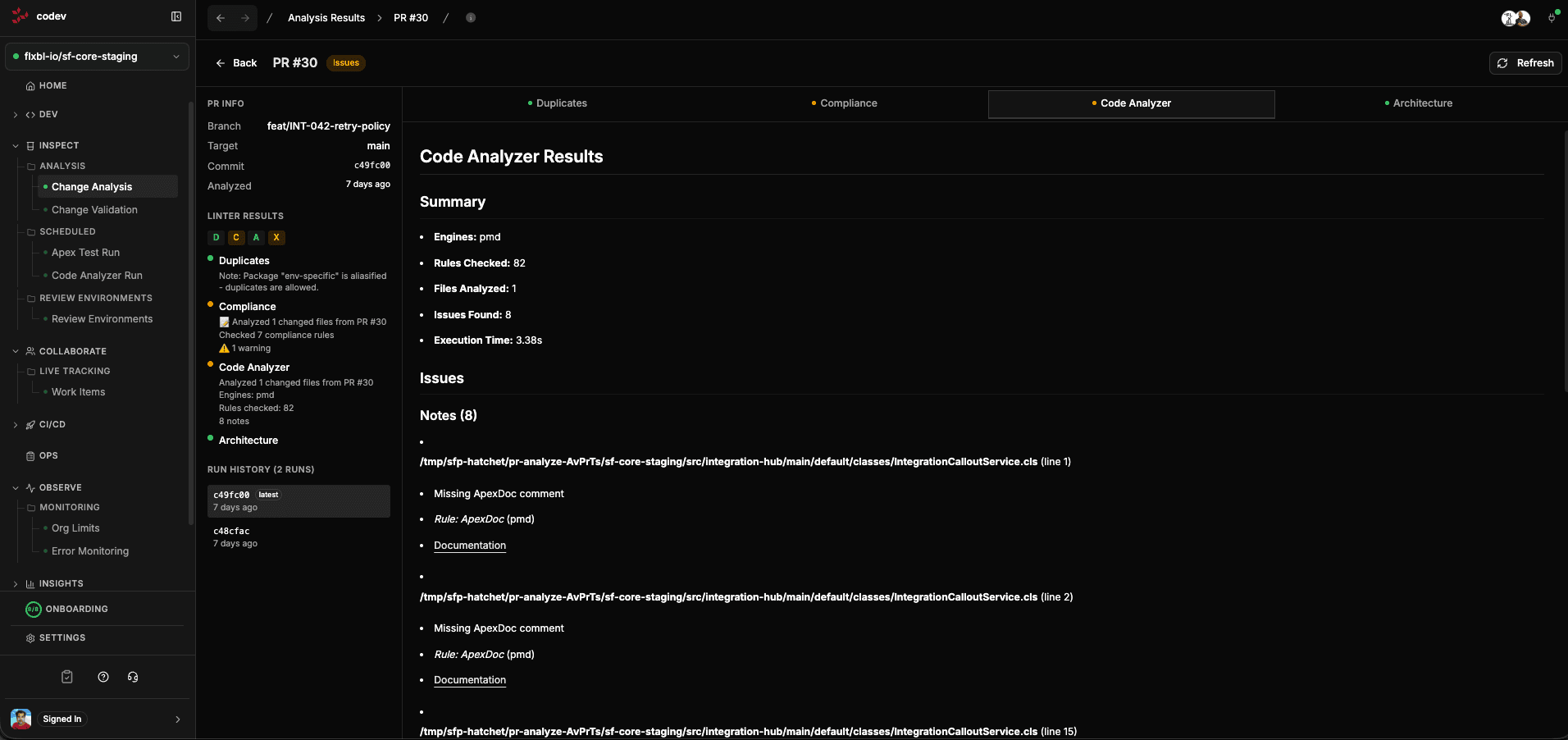

Code Analyzer Results
Code Analyzer results showing engine details, rules checked, issues found, and specific notes with file locations

Runs Salesforce Code Analyzer (PMD and other engines) against the changed files. Results are presented in SARIF format with the engine used, rules checked, files analyzed, execution time, and specific issues with file locations and line numbers.

By default, only violations on lines the PR added or modified can fail the check. Violations elsewhere in the changed files are listed under Pre-existing in touched files and do not fail it. See Code Analyzer scope.

Architecture

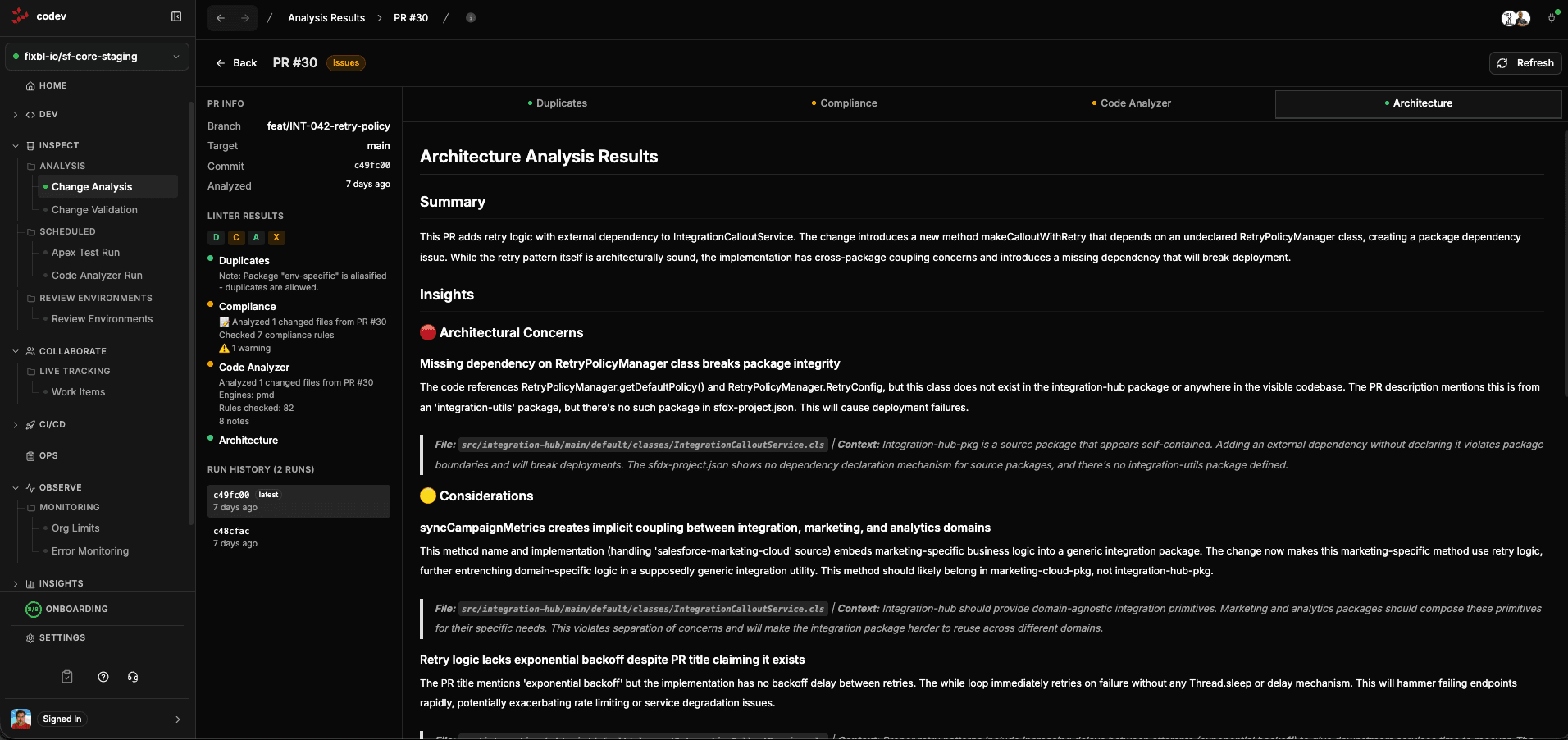

Architecture Analysis Results
Architecture Analysis showing AI-powered insights about coupling, dependency concerns, and design issues

AI-powered analysis that evaluates the architectural impact of your changes. It identifies concerns like implicit coupling between packages, dependency violations, backwards compatibility risks, and design issues. Each insight includes the specific files involved and an explanation of why it matters.

How it works

Change Analysis is triggered automatically when a PR is opened or updated. codev's workflow engine:

  1. Clones the repository at the merge ref
  2. Computes the diff between the PR and the base branch
  3. Runs each linter against only the changed files
  4. Publishes results to the server and creates a check run on the PR in GitHub or Azure DevOps

The whole process typically completes in under a minute.

Configuring analysis

Click Workflow Settings on the Change Analysis page to control how each PR is analyzed. The dialog holds the analysis workflow toggle, the codev Package Version Assessment toggle, and a set of per-branch rules. A rule matches a target branch by pattern — main, release/* — and carries two toggles per linter: Enabled runs the linter, Fail On makes its findings fail the PR check.

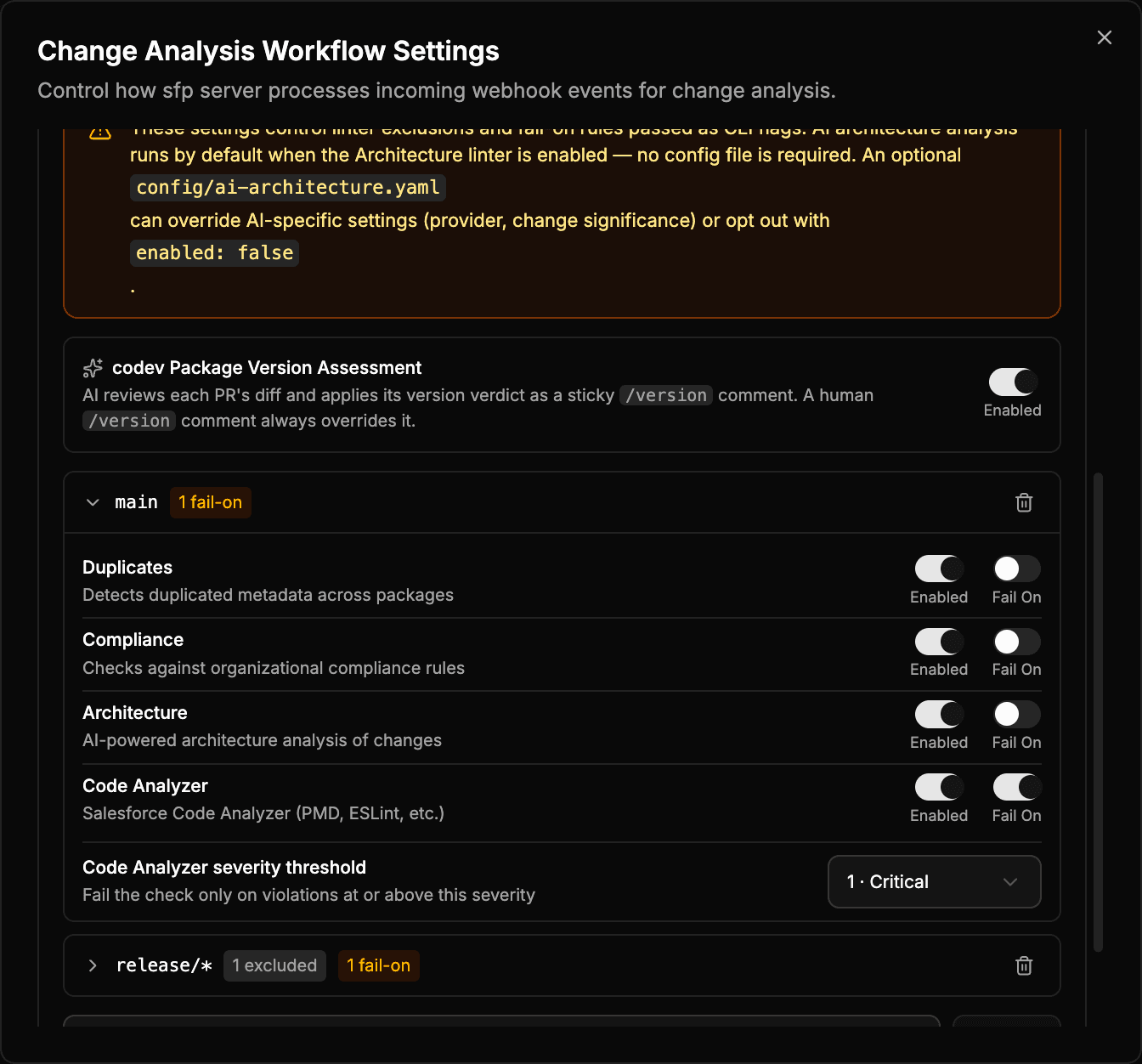

Change Analysis Workflow Settings dialog
Workflow Settings — a per-branch rule with an Enabled and a Fail On toggle for each linter, and the Code Analyzer severity threshold control

Code Analyzer severity threshold

When Code Analyzer is set to Fail On for a rule, a Code Analyzer severity threshold control appears. It fails the check only on violations at or above the chosen severity; lower-severity findings are still reported. Severity runs from most to least severe:

ValueSeverity
1Critical
2High
3Moderate
4Low
5Info

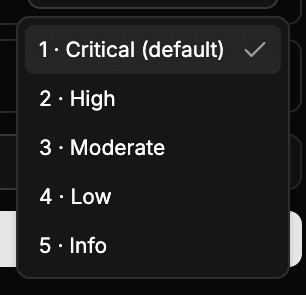

Code Analyzer severity threshold options
The severity threshold options, from Critical (1) to Info (5)

The control pre-fills Critical for a new rule, and a badge on the rule header marks any rule set to a more lenient level. Settings saved here are written to the server-side analyze configuration and apply to PR validation. The same threshold is available on the command line — see Failing on severity.

Code Analyzer scope

When Code Analyzer is set to Fail On for a rule, a Code Analyzer scope control appears below the severity threshold. It decides which violations in a changed file can fail the check:

  • Changed lines (default) — only violations that start on a line the PR added or modified. Code Analyzer still scans the whole file. Violations on lines the PR did not change are listed under Pre-existing in touched files in the results; they are reported, but they do not fail the check and get no annotation on the pull request.
  • Whole file — every violation in a changed file at or above the severity threshold fails the check.
Code Analyzer scope options
A branch rule that fails on Code Analyzer, with the Code Analyzer scope options Changed lines (default) and Whole file

A rule that reports at a class or method declaration, such as a method-naming rule, fails the check only when the PR changed that declaration line or added the file. When the changed lines cannot be worked out for a PR, the check falls back to whole files and its notes say Changed-line diff unavailable — gating on whole files. The command-line equivalent is described in Gating on changed lines.

The linters and fail-on rules can also be configured by adding configuration files to your repository under the config/ directory.

Configuration files

All configuration files live in your repository root under config/. If a file is absent, the linter falls back to safe defaults.

FilePurpose
config/analyze.yamlOrchestration: which linters run, what causes failure
config/compliance-rules.yamlRules for the compliance linter
config/code-analyzer.ymlConfig for Salesforce Code Analyzer (PMD/ESLint/CPD)
config/ai-assist.yamlConfig for the AI architecture linter
config/duplicates.yamlExclusion config for the duplicates linter

Orchestration — config/analyze.yaml

This file controls which linters run and which ones cause a PR check to fail. It supports per-branch overrides, so you can enforce stricter rules on release branches while keeping feature branches lenient.

# config/analyze.yaml
excludeLinters:
  - architecture

failOn:
  - compliance
  - code-analyzer

branchRules:
  - pattern: "release/*"
    failOn:
      - compliance
      - code-analyzer
      - duplicates
    codeAnalyzerSeverityThreshold: 2   # fail only on High and above
  - pattern: "main"
    failOn:
      - compliance
      - code-analyzer
    codeAnalyzerSeverityThreshold: 1   # fail only on Critical

codeAnalyzerSeverityThreshold is the same 1–5 scale as the Workflow Settings control (1 Critical … 5 Info); it fails the check only on Code Analyzer violations at or above that severity. It is the config-file equivalent of the UI control above — the value set in Workflow Settings is written to the server-side config, and a value here overrides that for the matching branch.

codeAnalyzerScope (changed-lines or file) is the config-file equivalent of the Code Analyzer scope control. Set at the top level of config/analyze.yaml, it applies to every target branch whose rule in Workflow Settings has no scope saved. A scope chosen in Workflow Settings takes precedence.

When changeSignificanceEnabled is set to true, the architecture linter skips PRs whose diffs are below the significance thresholds defined in ai-assist.yaml. This saves AI API costs for trivial changes.

Config priority

The analyzer resolves its orchestration config in this order:

  1. CLI flags — highest priority
  2. config/analyze.yaml — local file in the repo
  3. Server project config — fallback when no local file exists (configured in codev under project settings)
  4. Defaults — all linters enabled, none fail the check

For detailed configuration of each linter, see the sfp documentation:

Viewing results

The Change Analysis list shows one row per analysis run with a status pill (Pass, Issues, or Failed) and per-linter badges. Filter by branch, status, or PR number, search by commit or branch, and toggle Latest run only to collapse older runs of the same PR.

Click any PR row to see the full analysis detail. The left sidebar shows PR info (branch, target, commit) and linter result badges. The main content area shows each linter's findings as an expandable tree — expand a linter to read its individual notes, or use the expand-all control to open everything at once.

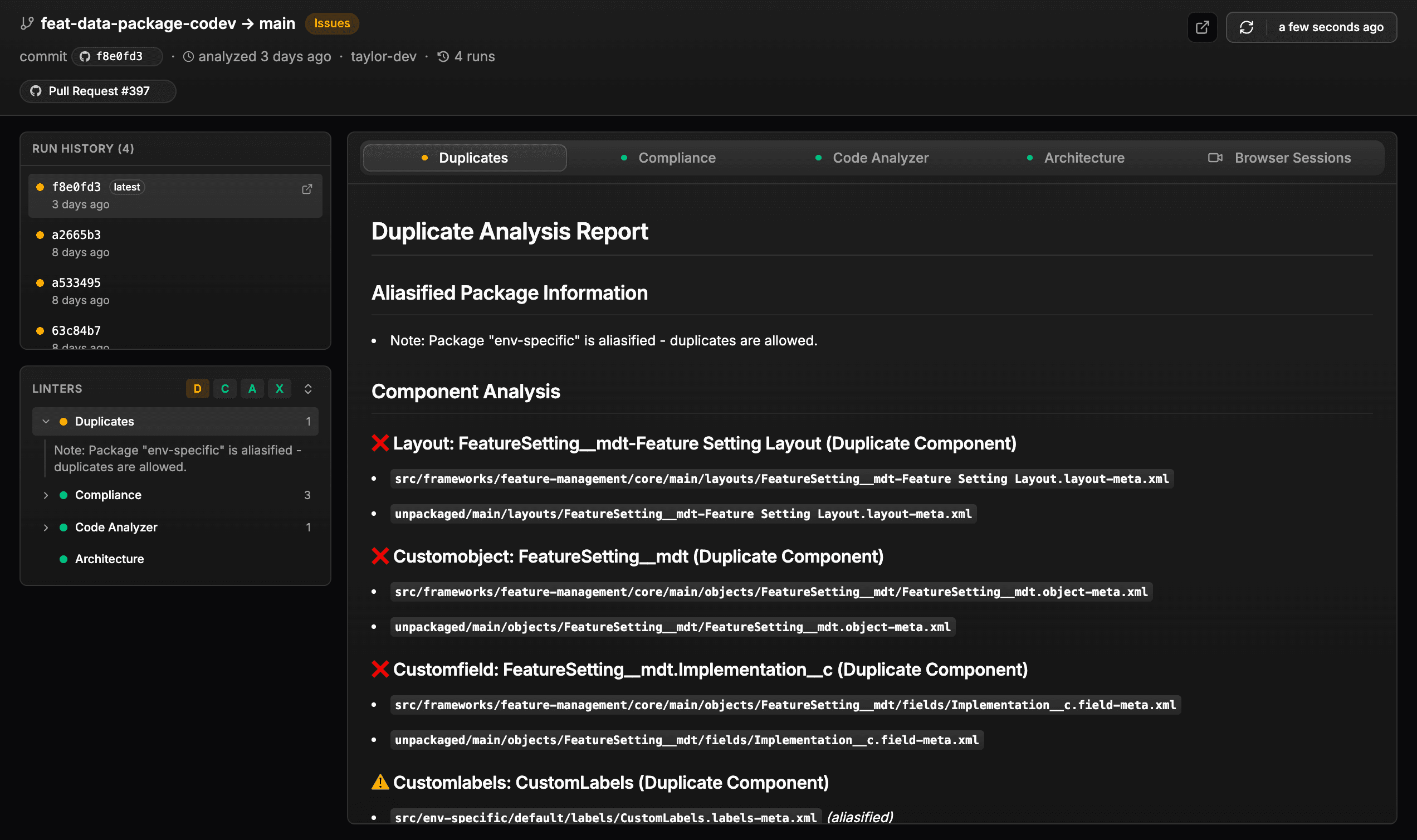

Change Analysis detail view
Analysis detail for a PR — linter tree with per-linter status and expandable findings

Each result links to its workflow run, so you can open the underlying execution and its logs when a linter fails unexpectedly. The Run History section at the bottom of the sidebar shows previous analysis runs for the same PR, so you can see if issues were introduced or fixed across commits.

Next steps

Change Analysis reviews the code in a PR; Change Validation deploys it to a review environment to prove it installs. Scheduled runs apply the same linters to whole branches on a schedule.
