# Workspace Explorer (Web)

The web app's Workspace Explorer browses your **repository** — no local workspace involved. Pick a branch, explore what the project contains, read code analysis findings, and generate **AI insight reports** for a package or a whole domain. Everything here is read-only: editing source, retrieving from orgs, and creating domains happen in the [desktop workspace](/flxbl/codev/development/development.md).

The page has two explorers, switched at the top of the tree, and a set of tabs on the right that follow what you select.

## Component Explorer

The **Component Explorer** shows the branch's source as a tree — package, metadata category, type, component — with the same filters as the rest of the page (domain, package, type, modified). Selecting a component opens it read-only in the **Code** tab.

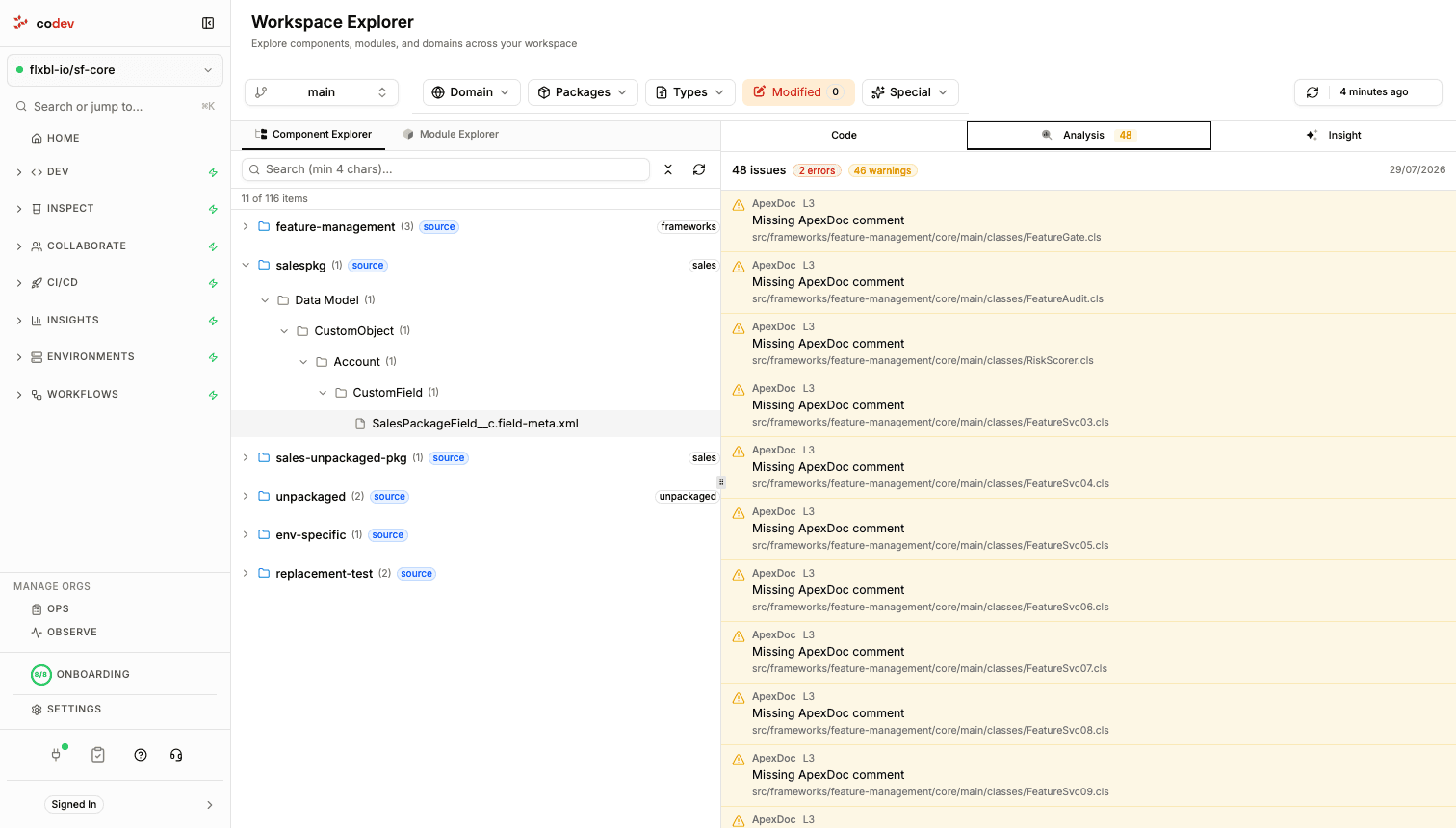

<figure><img src="/files/ak4BqR8pURZHVmcKrP2f" alt="The web Workspace Explorer&#x27;s Component Explorer with a field selected and the Analysis tab listing code analysis findings with severity, rule, and file path"><figcaption><p>Component Explorer — a component selected, with the Analysis tab listing code analysis findings for the branch.</p></figcaption></figure>

The **Analysis** tab lists the branch's code analysis findings — rule, severity, message, and file — with the totals summarised at the top. Analysis is collected automatically for the branch (and refreshed daily), so the findings are ready when you open the tab; see [Change Analysis](/flxbl/codev/inspect/change-analysis.md) for the analyzer itself.

## Module Explorer

The **Module Explorer** shows the same repository as domains and packages: each domain with its pool and packages, plus an **Unassigned Packages** group. Selecting a domain or a package drives the tabs on the right — **Insight**, **Versions** (packages only, the same list as [Packages → Versions](/flxbl/codev/development/packages.md#versions)), and **Configuration**, a read-only view of the domain's release configuration or the package's project entry.

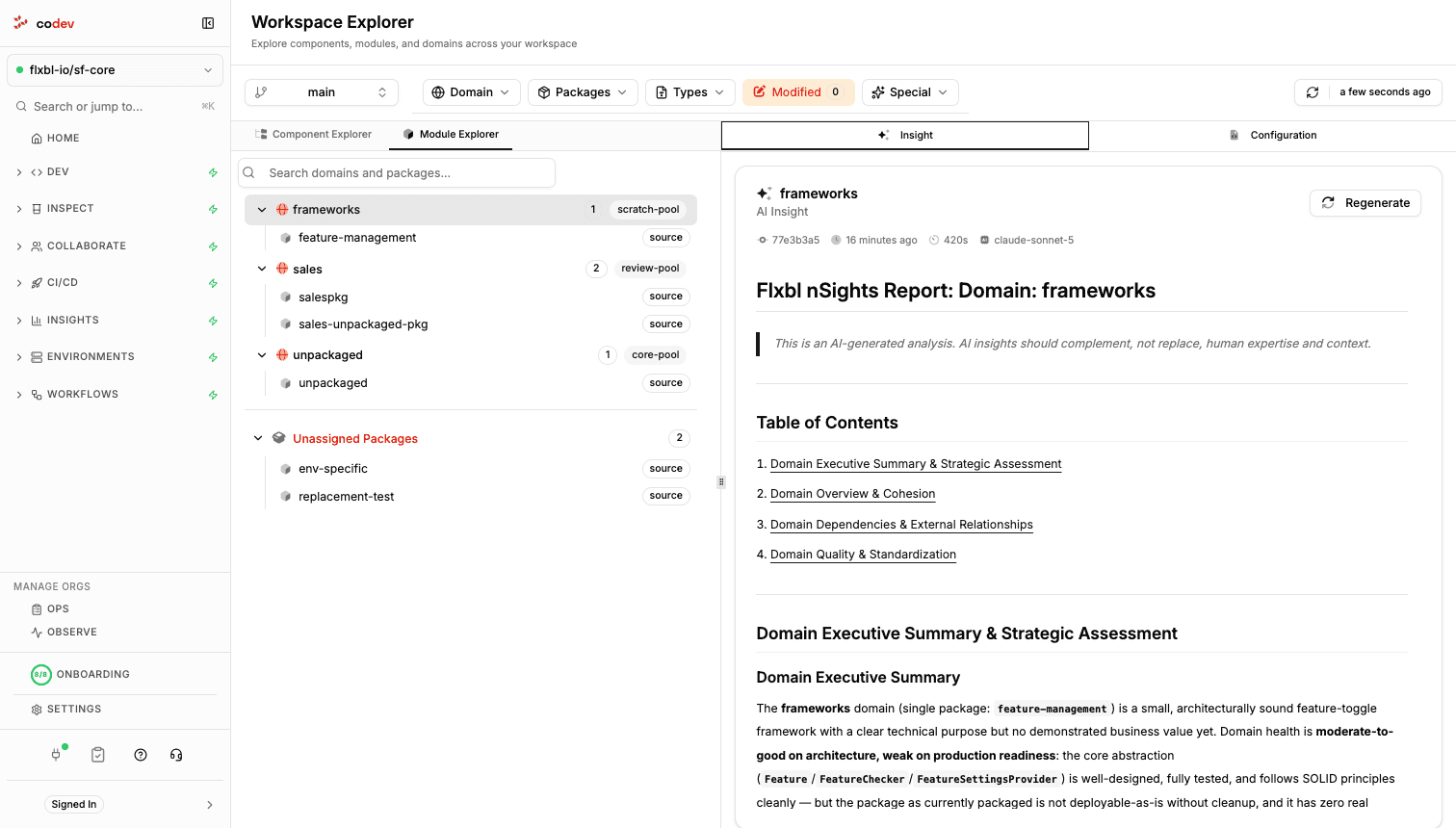

<figure><img src="/files/NTYrYxblfYWXkq04UKcT" alt="The Module Explorer with the frameworks domain selected and its AI insight report open, showing the report header with commit, age, duration, and model, and the report&#x27;s table of contents"><figcaption><p>Module Explorer — a domain selected, with its AI insight report in the Insight tab.</p></figcaption></figure>

## AI insight reports

The **Insight** tab holds an AI-generated analysis of the selected package or domain: an executive summary and health assessment, followed by sections on overview, architecture, dependencies and relationships, and quality. The report is grounded in the repository — the analysis reads the actual source and git history of the scope it covers.

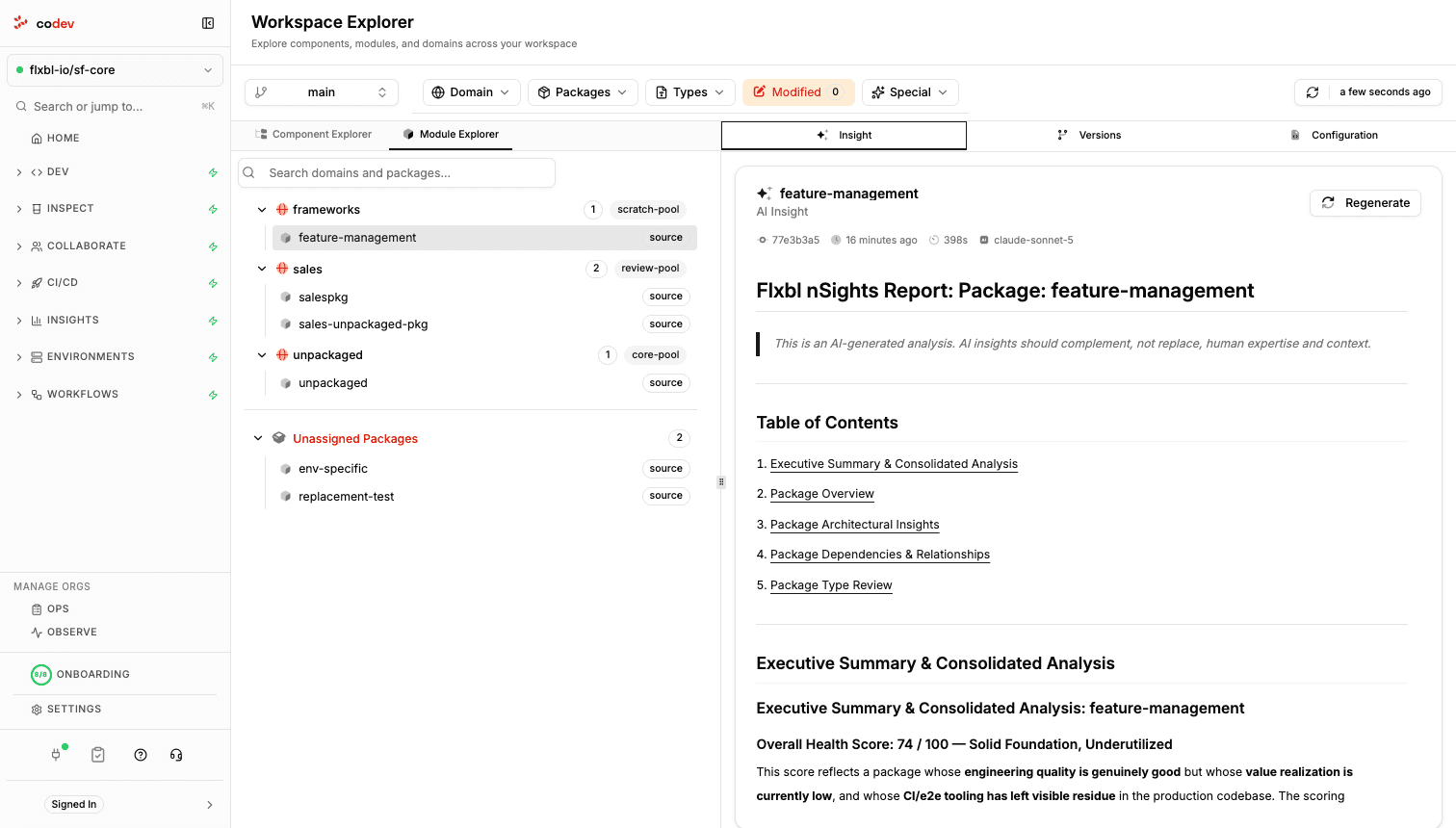

<figure><img src="/files/9ddxcGvuYpz71t6r9Jn6" alt="A package insight report showing an overall health score with executive summary, table of contents, and the report metadata chips for commit, age, duration, and model"><figcaption><p>A package insight — health score, executive summary, and section-by-section analysis.</p></figcaption></figure>

Reports are generated **only when you ask**: click **Generate Insight** (or **Regenerate** on an existing report) and the analysis runs in the background — a few minutes for a package, longer for a domain. Each report carries the commit it analysed, when it ran, how long it took, and the model that produced it. Requesting a report when one already exists for the current commit does nothing — codev tells you the report is up to date, and one analysis runs per scope at a time.

{% hint style="info" %}
Insight reports require an AI provider — configure one under **Settings > Integrations > AI Providers**. See [AI Providers](/flxbl/codev/integrations/ai-providers.md).
{% endhint %}

Insight reports analyse the project's **main branch** regardless of the branch selected in the explorer — the branch selector scopes the trees, the code, and the analysis findings, not the AI reports.


---
