# Jira

The Jira integration connects codev to your Atlassian Jira site so that the work items referenced in your commits are visible throughout your delivery pipeline — and, optionally, so that codev reports deployment and build status back to the matching Jira issues.

You configure it under **Settings > Organization > Integrations > Jira**. Only organization owners can manage it.

## What the Jira integration does

The integration works in two directions. Reading work items is enough for most teams; write-back is optional and needs the OAuth method.

| Capability                                                                                             | Supported | Needs                           |
| ------------------------------------------------------------------------------------------------------ | --------- | ------------------------------- |
| Read a Jira issue and show its summary, status, assignee, and a link                                   | ✅         | Basic Auth or OAuth             |
| Search issues with filters (project, status, assignee, type)                                           | ✅         | Basic Auth or OAuth             |
| Detect Jira issue keys in commit messages and surface them on builds, release candidates, and releases | ✅         | Basic Auth or OAuth             |
| Report deployments to Jira's **Deployments** panel                                                     | ✅         | OAuth + write-back enabled      |
| Report builds to Jira's **Builds** panel                                                               | ✅         | OAuth + write-back enabled      |
| Add a cumulative deployment-timeline comment to each referenced issue                                  | ✅         | OAuth + write-back enabled      |
| Create, edit, transition, or close issues                                                              | ❌         | Use Jira Automation (see below) |

codev never edits your issues directly. To move an issue's status when it is deployed, drive a **Jira Automation** rule from the deployment data codev writes back.

## Authentication methods

Jira offers two methods. They are independent — you can register one or both, and each can serve a different purpose.

| Method                       | What you provide                                 | What it powers                                                                                    |
| ---------------------------- | ------------------------------------------------ | ------------------------------------------------------------------------------------------------- |
| **Basic Auth (API Token)**   | Base URL, your Atlassian email, and an API token | Reading issues and searching — everything that displays and links work items.                     |
| **OAuth Client Credentials** | Base URL, Client ID, and Client Secret           | Writing deployment and build status back to Jira's DevOps panels and adding the timeline comment. |

{% hint style="info" %}
If both are registered, codev reads issues through **Basic Auth** and writes back through **OAuth**. If only OAuth is registered, it can also read issues, with the scope its DevOps app allows.
{% endhint %}

{% hint style="warning" %}
**Write-back is Atlassian Cloud only.** The OAuth method targets Jira Cloud sites (`*.atlassian.net`). Reading via Basic Auth works against any reachable Jira site that accepts an API token.
{% endhint %}

## You bring your own Jira

Unlike GitHub on the cloud instance, there is **no flxbl-managed Jira connection**. Jira is always something your organization connects itself — on both the cloud and self-hosted instances. Until you register a Jira integration, work items are not read and nothing is written back.

## Adding the integration

1. Go to **Settings > Organization > Integrations > Jira**.
2. Under **Add New Integration**, choose the **Authentication Method**.
3. Fill in the credentials:
   * **Basic Auth (API Token)** — your site **Base URL** (`https://your-domain.atlassian.net`), your Atlassian email as the **Username**, and an **API Token** created at *Atlassian Account Settings > Security > API tokens*.
   * **OAuth Client Credentials** — your site **Base URL**, and the **Client ID** and **Client Secret** of a Jira OAuth credential (see [Creating the OAuth credential](#creating-the-oauth-credential) below).
4. Set **Availability** to **Global** (optionally marking it the default for Jira) or to a **specific project**.
5. Click **Add Integration**.

Existing integrations are listed with their method, scope, default marker, and status, and can be edited or removed at any time.

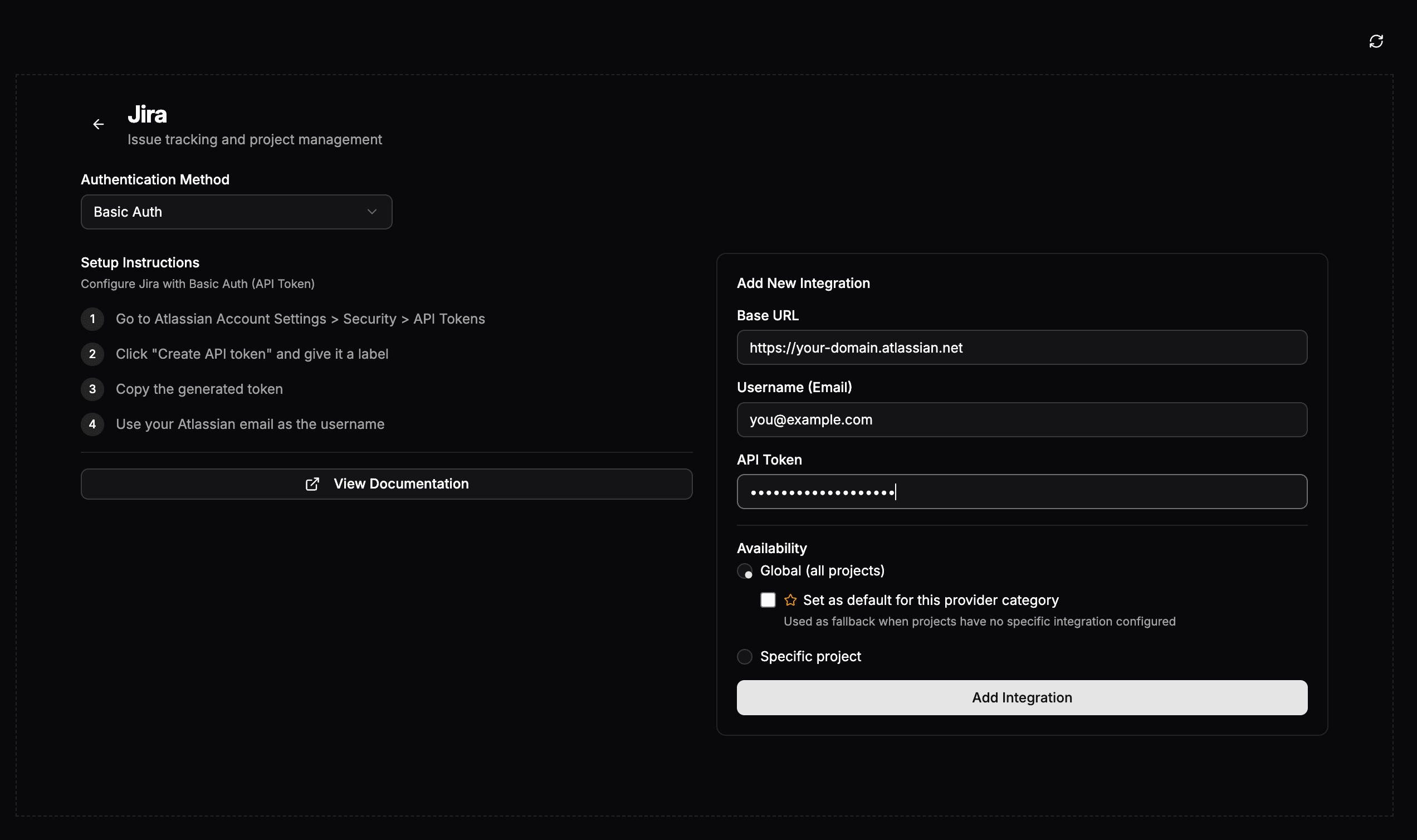

<figure><img src="/files/vrjRAYqCa7a9jhBhJA02" alt="The Jira integration page with the Add New Integration form"><figcaption><p>Settings > Organization > Integrations > Jira — the <strong>Authentication Method</strong> selector switches between Basic Auth (base URL, Atlassian email, API token) and OAuth Client Credentials (base URL, Client ID, Client Secret).</p></figcaption></figure>

## Creating the OAuth credential

The OAuth Client Credentials method authenticates to Jira's DevOps APIs (Deployments and Builds), and the credential for those APIs is created by a Jira site admin — **not** in the Atlassian Developer Console.

1. In Jira, go to **Settings > Apps > OAuth credentials**.
2. Select **Create new credentials**.
3. Give it a name and a **Server base URL** (your codev instance URL), and grant the **Deployments** and **Builds** permissions.
4. Copy the generated **Client ID** and **Client Secret** into the **OAuth Client Credentials** fields on the codev Jira integration form, along with your site **Base URL**.

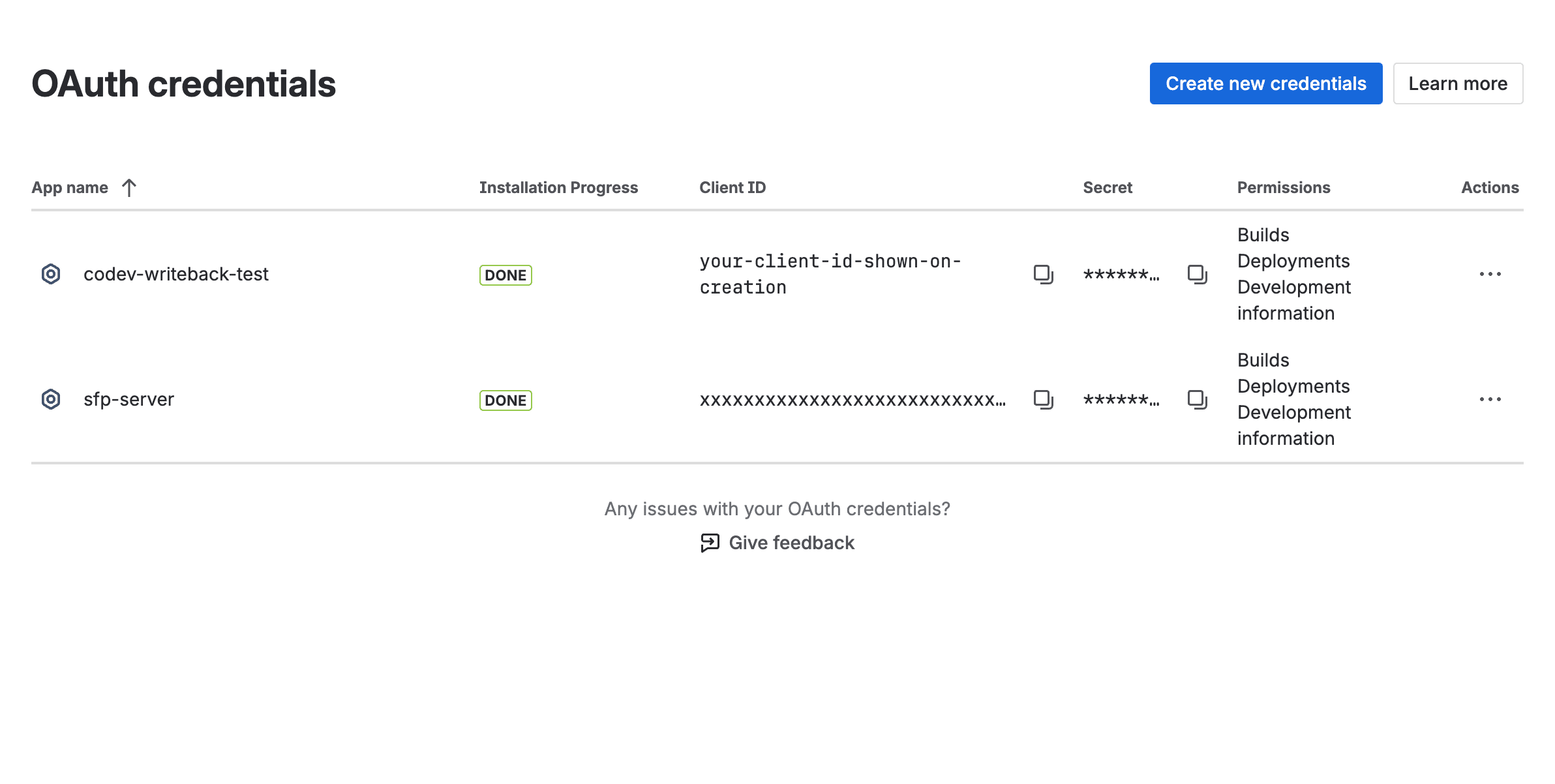

<figure><img src="/files/AdWJYjkL6CV7QWfIUrij" alt="The Jira OAuth credentials admin page with a credential granting Builds and Deployments permissions"><figcaption><p>Jira > Settings > Apps > OAuth credentials — create a credential with the Deployments and Builds permissions, then copy its Client ID and Secret into codev.</p></figcaption></figure>

## Scoping and precedence

Each integration is either **Global (all projects)** or scoped to a **specific project**, and a global integration can be marked the **default** for Jira. When codev needs Jira credentials for a project, it picks the most specific match:

1. A Jira integration scoped to **that project**
2. The integration marked **default** for Jira
3. A **global** Jira integration

## Showing work items

Once a read-capable integration is registered, codev extracts Jira issue keys from your commit messages (for example, `DP-123` or `[PROJ-456]`) and surfaces them where you plan and ship. For the full set of recognised commit-message formats — and a common pitfall, since an issue key in round parentheses is not detected — see [Work items](/flxbl/codev/ci-cd/work-items.md). Detected keys are surfaced:

* On a **release candidate**, under the **Work Items** tab, grouped by source with the Jira issues shown as clickable keys.
* In the **release request** flow, as *indicative work items*, so you can see which issues a release will deploy and whether the deployment is full or partial.

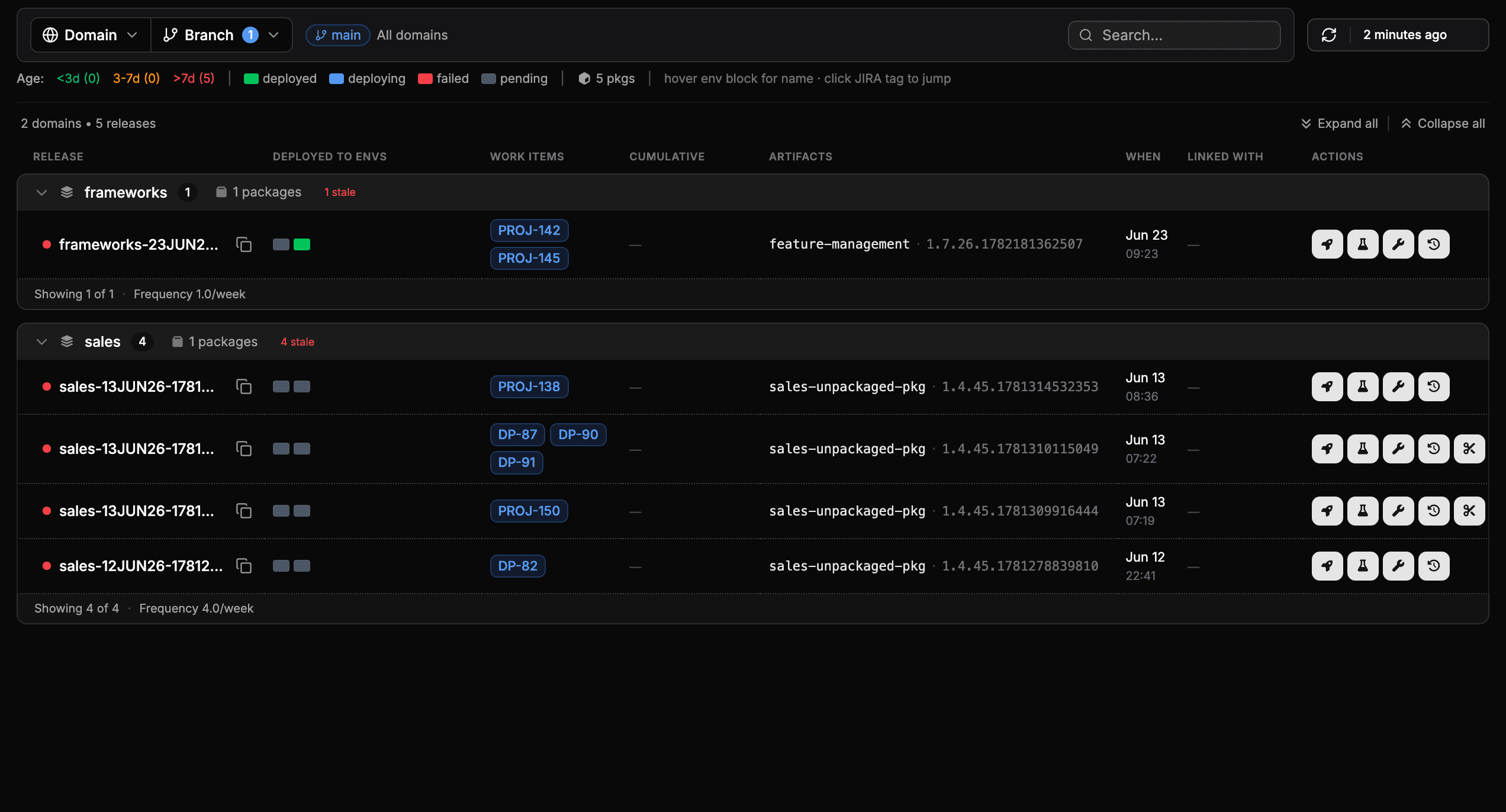

<figure><img src="/files/F2iGGjvyH04BnxUOVzC3" alt="Release candidates with detected Jira issue keys shown in the Work Items column"><figcaption><p>Detected Jira issue keys appear against each release candidate; click a key to open the issue in Jira.</p></figcaption></figure>

How keys are detected and linked is part of each project's configuration:

| Setting               | What it controls                                                                                             |
| --------------------- | ------------------------------------------------------------------------------------------------------------ |
| `jiraProjects`        | Limits work items to specific project keys, e.g. `["DP", "PROJ"]`.                                           |
| `baseUrl`             | The browse URL used to build issue links, e.g. `https://your-domain.atlassian.net/browse`.                   |
| `workItemRegexFilter` | A custom pattern for issue keys when the default `ABC-123` style does not fit, e.g. `(FGK\|FFK)-[0-9]{3,4}`. |

## Writing status back to Jira

Write-back is optional. It is active for a project only when **both** conditions are met:

* An **OAuth Client Credentials** integration is registered, and
* Write-back is **enabled** in the project's configuration.

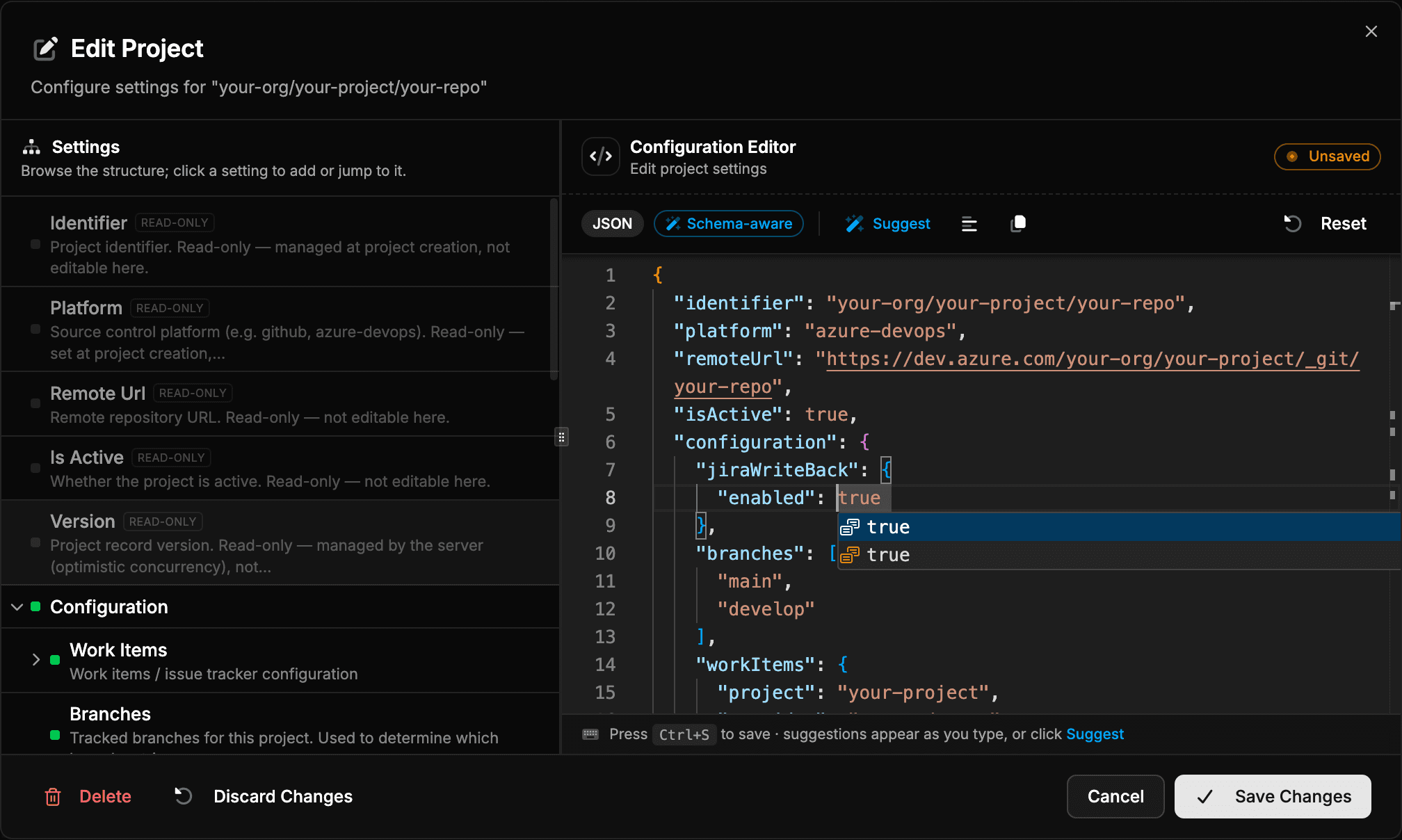

<figure><img src="/files/zWXiSd3UnbwsUZzf2S3y" alt="The project configuration editor with Jira write-back enabled"><figcaption><p>Enable write-back in the project configuration — <code>jiraWriteBack.enabled</code> set to <code>true</code>.</p></figcaption></figure>

When active, codev reports to Jira as your pipeline runs:

| Event                                   | What appears in Jira                                                                                                                                                  |
| --------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| A release is deployed to an environment | A deployment entry in the **Deployments** panel of every issue referenced in the release, marked successful or failed, with the environment and a link back to codev. |
| A release is finalized                  | The deployment timeline is updated to reflect the finalized release.                                                                                                  |
| A build completes                       | A build entry in the **Builds** panel of the referenced issues, with a link to the run.                                                                               |

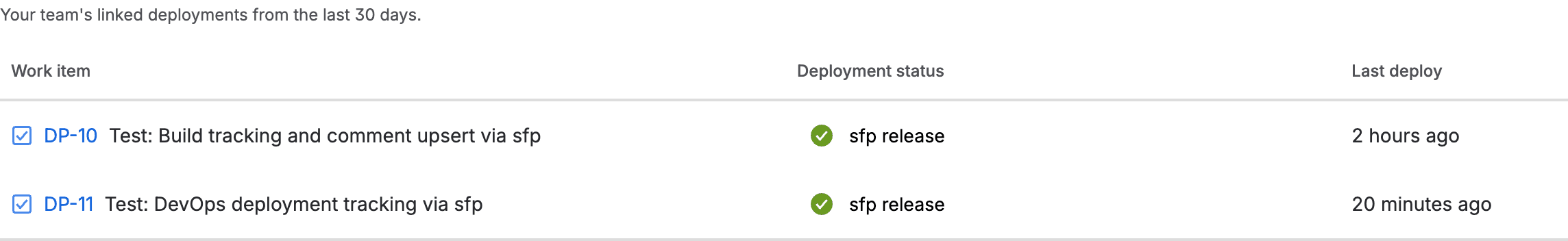

<figure><img src="/files/0WdaKqRsfXEYPZnW3nIc" alt="Jira project Development view listing successful deployments against the referenced issues"><figcaption><p>Deployments codev reports back, shown against the work items they reference (Jira project <strong>Development > Deployments</strong>).</p></figcaption></figure>

codev maps your environments to Jira's environment types — review and dev environments as *development*, test and snapshot as *testing*, and release as *staging*.

{% hint style="info" %}
**It can take a few minutes to appear.** Jira indexes deployment and build data asynchronously, so the **Deployments** and **Builds** entries may not show on an individual issue immediately — they usually appear within a few minutes, and can take longer the first time a new credential reports data. The project-level **Development > Deployments** view is the most reliable place to confirm the data has arrived.
{% endhint %}

{% hint style="info" %}
**Moving issues automatically.** codev writes deployment and build data but does not transition issues itself. Use a **Jira Automation** rule that reacts to the deployment data — for example, transition an issue to *Done* when it is deployed to your release environment.
{% endhint %}

## Self-hosting

The two methods work the same on a self-hosted instance, with the same Cloud-only restriction on OAuth write-back. Server-level configuration is covered in the [sfp server](https://docs.flxbl.io/sfp-server) documentation.

***

Once a read-capable integration is registered, see how detected issue keys appear across your pipeline.

{% content-ref url="/pages/EaEqKP4eZhO5DCoR1v9F" %}
[Work items](/flxbl/codev/ci-cd/work-items.md)
{% endcontent-ref %}


---
